Using generic Intel SSD in DL360p Gen8 with Smart Array P420i


Grishko
Advisor

Using generic Intel SSD in DL360p Gen8 with Smart Array P420i

Hello,

I have HPE DL360p Gen8 with Smart Array P420i and two SSDs RAID-1 following model:

LK1600GEYMV (804631-B21)

Information about the SSD from ssacli below.

As I now it's Intel SSD DC S3610 1.6TB.

Can I use generic Intel SSD as hot spare for that RAID-1? How I can update firmware for right version?

Thanks for your advice!


physicaldrive 2I:1:6
Port: 2I
Box: 1
Bay: 6
Status: OK
Drive Type: Data Drive
Interface Type: Solid State SATA
Size: 1.6 TB
Drive exposed to OS: False
Logical/Physical Block Size: 512/4096
Firmware Revision: 4IWTHPG1
Serial Number: -
WWID: 30014380275C78C5
Model: ATA LK1600GEYMV
SATA NCQ Capable: True
SATA NCQ Enabled: True
Current Temperature (C): 20
Maximum Temperature (C): 47
Usage remaining: 99.95%
Power On Hours: 1779
Estimated Life Remaining based on workload to date: 148175 days
SSD Smart Trip Wearout: False
PHY Count: 1
PHY Transfer Rate: 6.0Gbps
Drive Authentication Status: OK
Carrier Application Version: 11
Carrier Bootloader Version: 6
Sanitize Erase Supported: True
Sanitize Estimated Max Erase Time: 2 minute(s) 0 second(s)
Unrestricted Sanitize Supported: True
Shingled Magnetic Recording Support: None



3 REPLIES 3
AmRa
HPE Pro

Re: Using generic Intel SSD in DL360p Gen8 with Smart Array P420i

Can I use generic Intel SSD as hot spare for that RAID-1?
>>If RAID-1 is create with different technology of hard drive (eg. magnetic media drives) you cannot make SSD as hot spare drive for same logical drive.

How I can update firmware for right version?
>>You can search the firmware on goggle or HPE download and driver with Model of the hard drive.
eg.
Model: ATA LK1600GEYMV
https://support.hpe.com/hpsc/swd/public/detail?swItemId=MTX_642c151cab514527a689a5f4ef

I am an HPE Employee

Accept or Kudo
Sebasbin
HPE Pro

Re: Using generic Intel SSD in DL360p Gen8 with Smart Array P420i


Hi Grishko ,

If you want to add hot spare for the existing array ,then the new drive should be same type/Technology.And use drives that have a capacity equal to or larger than the capacity of the drive in the array.

HPE is recommending to use the parts which is supported as per server quick specs and spare parts document below

HP ProLiant DL360p Generation 8 (Gen8) -QuickSpecs
https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04128242

HPE ProLiant DL360p Gen8 Server - Spare Parts
https://support.hpe.com/hpesc/public/docDisplay?docId=emr_na-c03244000

Please find the below link for the HDD-Model-LK1600GEYMV firmware.
https://support.hpe.com/hpsc/swd/public/detail?swItemId=MTX_642c151cab514527a689a5f4ef

If you are looking for other vendor hard drive firmware ,then you need to check with Hard drive vendor website to get the right firmware .


Note: While I am an HPE Employee, all of my comments (whether noted or not), are my own and are not any official representation of the company

Accept or Kudo

Grishko
Advisor

Re: Using generic Intel SSD in DL360p Gen8 with Smart Array P420i

Thank you for your reply!

Please clarify.

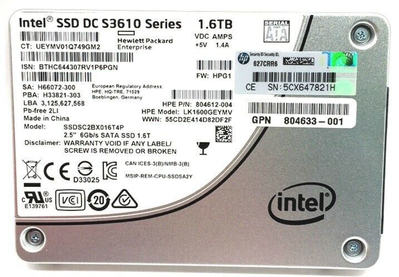

As we see in the photo above LK1600GEYMV (804631-B21) is Intel SSD DC S3610 1.6TB.

Can we update firmware by using your link on Intel SSD DC S3610 1.6TB and get LK1600GEYMV (804631-B21) after this operation?
