Growing attacks using Accept-Charset exploit

[HPE_Threat_Labs]

Juniper Threat Labs is seeing a growing attack on Accept-Charset HTTP Header. This request header allows the client to indicate what character sets, i.e., ISO-8859-1 or utf-8,  are available for response. Attackers are trying to exploit this header by passing a base64-encoded PHP code. During the course of our investigation, we have identified the vulnerable software to be a tampered version of phpStudy. At some point in time, hackers were able to hack into phpStudy and tamper on 2016 and 2018 versions of the software to make it vulnerable to this specific exploit.

Based on our telemetry, the attacks started in September 2019 and we are seeing continuous attack as of this writing.

Accept-Charset attacks seen on our honeypots recently

Port 80 is the port mostly being attacked, which is to be expected since most web services are hosted using this port. Most of the attacks we have seen are also coming from China.

Top ports attacked with this exploit

Geographical distribution of the source of attacks

The following are the type of attacks we have seen.

Download and execute attacks
Attack Type 1

Exploit that installs a Gh0st RAT as payload

A successful exploitation would lead to execution of MSSQL.exe, which is a variant of Gh0st RAT.
Attack Type 2

Exploit that installs another Gh0st RAT as payload

The attack above installs another version of Gh0st RAT and it also adds the user huang$.
Attack Type 3

Exploit that executes a powershell script

Vercheck.ps1 is not available at the time of our testing but it is probably a powershell script that checks the version of the system. Additionally, the domain auth[.]to0ls.com was seen at some point to host other malwares, such as:

auth[.]to0ls[.]com domain was seen hosting other malicious files

GSI - A Themida packed malware that gets system information

Brootkit.sh- a shell script that installs a linux rootkit
Attack Type 4

Attack that installs a bot

This attack installs a windows bot attributed to Bulehero botnet.

We attributed this to Bulehero botnet because of the pattern in the payload and the payload delivery, including using certutil. This bot is among the most active attacks we are seeing on our honeypot. They are constantly adding new exploits to their arsenal and updating their download url from time to time.

Installing PHP Backdoor attack
We have also seen requests where attackers implant a PHP backdoor.

Attack that installs a PHP backdoor as another persistence

The above code will create a olelist.php file on the server that acts as a PHP backdoor. This short PHP script will extract the $_POST variable, make it a function named guoDdun() and then call it. In effect, attackers can make a POST request to https://{server}/olelist.php and inject any command such system(“cmd”). Attackers are doing this to maintain persistence on the system, in the event that the server is not vulnerable anymore to the initial exploit.

Probing Attacks
In addition to the malicious attacks we are seeing above, we also see some probing where attackers are just testing if they can execute a code.

Probing attack 1

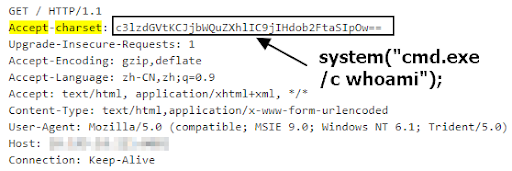

Probing attack 2

Backdoored phpStudy as the culprit

At one point during our discovery of these attacks, we did not know yet which software the attackers are trying to exploit. In our effort to find the vulnerable software, we stumbled into a POC script in github that is using the same attack methodology. The vulnerable software was apparently phpStudy, a Chinese learning management system. It is a one-click installation software, which includes PHP, MySQL, Apache and more. Think about XAMPP.

Accept-charset exploit POC in github

We then found a tweet saying that phpStudy was indeed backdoored.

According to the above tweet, a version of phpStudy was tampered, specifically the file php_xmlrpc.dll was changed. Below are a list of the files as IOCs.

MD5	Description
c339482fd2b233fb0a555b629c0ea5d5	malicious php_xmlrpc.dll
0f7ad38e7a9857523dfbce4bce43a9e9	malicious php_xmlrpc.dll
8c9e30239ec3784bb26e58e8f4211ed0	malicious php_xmlrpc.dll
e252e32a8873aabf33731e8eb90c08df	malicious php_xmlrpc.dll
9916dc74b4e9eb076fa5fcf96e3b8a9c	malicious php_xmlrpc.dll
f3bc871d021a5b29ecc7ec813ecec244	malicious php_xmlrpc.dll
9756003495e3bb190bd4a8cde2c31f2e	malicious php_xmlrpc.dll
d7444e467cb6dc287c791c0728708bfd	malicious php_xmlrpc.dll
fc44101432b8c3a5140fcb18284d2797	infected PhpStudy install package (ver2018)
a63ab7adb020a76f34b053db310be2e9	infected PhpStudy install package (ver2016)
0d3c20d8789347a04640d440abe0729d	infected PhpStudy install package (ver2016)

Here is another report about the phpStudy backdoor.

Analysis of the php_xmlrpc.dll backdoor
This dll first checks if the encoding is “gzip,deflate”. Then it will extract the value in Accept-Charset, base64 decode it and call zend_eval_string to execute whatever the data is.

Malicious function in the php_xmlrpc backdoor

We also discovered another software which contains this backdoor. A free software called TakeUX was implanted with this backdoor. The download link is still active as of this writing.

Another software with the php_xmlrpc backdoor

Yara rule for php_xmlrpc.dll backdoor

To check if any of your systems have malicious version of this dll, you can use the following YARA rules.

rule backdoor_php_xmlrpc {

   meta:

      description = "Detects php_xmlrpc backdoor"

      author = "Paul Kimayong"

      date = "2019-10-31"

      hash1 = "8f2874e38e5e2d0a3368690badf75a6af8f848d8a976a357499a7c9050c70e04"

         hash2 = "30f01be2f188553eb6122102f46bc36314e54a4977a842dd0ae96d43f9fc9cc8"

         hash3 = "ae5270df65c72b3bc25b5f16e77884a5e91c5579ce3be209d6dccf5c8aff5318"

         hash4 = "aea021c5d79adbdc8a755d2f56db4f2e71781abbdcce2a2fa6e04aff3c02be75"

         hash5 = "d6dd3c4d666385fa1412a4c2fc67cc8d1b6f00ccc722717dded6d48eda79c049"

   strings:

      $str1 = "zend_eval_string"

         $str2 = "HTTP_ACCEPT_CHARSET"

         $str3 = "gzip,deflate"

         $str4 = "HTTP_ACCEPT_ENCODING"

         $str5 = "php_xmlrpc.dll"

         $str6 = "@eval(%s"

   condition:

      ( uint16(0) == 0x5a4d and all of them )

}

Conclusion
We downloaded several versions of phpStudy to test and we did not find them to be vulnerable with this attack anymore. The reports also said that the hackers who implanted the backdoor were arrested by the Chinese authorities in September 2019.

Supply chain attacks are a growing threat. One way to mitigate your risk is to validate the integrity and validity of the software you are installing by doing a hash and signature validation. Another best practice is to enforce security on your infrastructure that can protect you against these types of exploits.

Juniper Networks detects this attack as follows:

HTTP:PHP:ACCEPT-CHARSET-CMD-INJ

Indicators of Compromise

c339482fd2b233fb0a555b629c0ea5d5	malicious php_xmlrpc.dll
0f7ad38e7a9857523dfbce4bce43a9e9	malicious php_xmlrpc.dll
8c9e30239ec3784bb26e58e8f4211ed0	malicious php_xmlrpc.dll
e252e32a8873aabf33731e8eb90c08df	malicious php_xmlrpc.dll
9916dc74b4e9eb076fa5fcf96e3b8a9c	malicious php_xmlrpc.dll
f3bc871d021a5b29ecc7ec813ecec244	malicious php_xmlrpc.dll
9756003495e3bb190bd4a8cde2c31f2e	malicious php_xmlrpc.dll
d7444e467cb6dc287c791c0728708bfd	malicious php_xmlrpc.dll
fc44101432b8c3a5140fcb18284d2797	Backdoored PhpStudy install package (ver2018)
a63ab7adb020a76f34b053db310be2e9	Backdoored PhpStudy install package (ver2016)
0d3c20d8789347a04640d440abe0729d	Backdoored PhpStudy install package (ver2016)
0be0dc4e8b84f721e37eb914af5617f9	Backdoored TakeUX software
122[.]143[.]19.72 45[.]12[.]204.223 auth[.]to0ls[.]com fky[.]dfg45dfg45[.]best	Attack payload download urls
453652495b293c179ea8d6a6243f70c4	payload
d27202ad0a80edefc2067a7d905f2044	payload

This article was originally published on November 5, 2019.
