MSA 2050 SSD read cache on controller B only 4% allocated

[czobi]

I have an issue on HPE MSA 2050 SAS storage pool B read cache. It has a RAID5 disk group and an SSD read cache. The volume assigned to is a storage for hyper-v virtual machines. The cache has 182214 free, but only 7825 allocated pages.

Pool A has two disk RAID5 groups and a read cache with same size, it is used for also VMs and backups. The read cache is the same size and all pages are allocated.

I expect pool B read cache should also be allocated fully after a certain amount of time. Is it an error or feature?

[support_s]

System recommended content:

1. HPE MSA 2050 SAN Storage - Option Parts

2. HPE MSA 2050 SAN Storage - Product Information Reference | Drives

Please click on "Thumbs Up/Kudo" icon to give a "Kudo".

Thank you for being a HPE valuable community member.

[shiva_jr]

Hi @czobi ,
    If you have the Read cache, it only concerned with the read operation.  Please try the following-
1)  Your data activity migh have more read operation in Pool A data than in Pool B.
     Review the read performance by IOPS and throughput. If it has more read operation, it is common to see the read cache utilization.

2) Update the MSA firmware, it may help the controller to manage IOs.

3) You can refer this document (page no.136) to improve the performance.

4) You can flush/delete the read cache and recreate, it won't affect the volumes.

5) If you have concern in capacity sizing, you can refer this document.
Along with this, post1 and post2 may also help you.

I hope, my post help you, please give Kudos and mark my post as Accepted Solutions.

Regards,
Shiva_jr

[support_s]

Hello,

Let us know if you were able to resolve the issue.

If you are satisfied with the answers then kindly click the "Accept As Solution" button for the most helpful response so that it is beneficial to all community members.

Please click on "Thumbs Up/Kudo" icon to give a "Kudo".

[czobi]

Thanks for your reply! I more deeply examined the issue. I've already tried all in your checklist earlier.
The read cache issue is not the main one. The overall storage performance was very low. Let me describe my configuration.
It has two HPE DL380 Gen10 servers (HOST1 and HOST2), double CPU, 256GB RAM each. They connected to the MSA 2050 SAS. Both servers are running Windows 2022 Standard, with hyper-v failover clustering. Most VMs are Windows servers. This configuration has been working for more than 6 years without any major problem. The hosts were upgraded from WS 2016 about a year ago.
The main issue we have since several months the poor storage performance on VMs. As tried to find the source of the issue I set up a Zabbix appliance and monitor the hosts, VMs and the MSA.

Finally, I might find the source of the problem: the MSA has relatively high CPU load (about 60%). The interesting thing is if I migrate all VMs to HOST2 the CPU load on MSA suddenly drops between 0 and 10% and the whole system performance become very good. And the read cache in Controller B is starting to allocate much more pages (reaching about 50%).. Very strange behaviour. Then, if I migrate one or several VMs to HOST1, the CPU load goes back to 60% and the overall performance drops. I attached several screen shots of zabbix graphs with interested time range. On 14th March a full system shutdown, poweroff and reastart was done. On 16h March all VMs were migrated to HOST2.

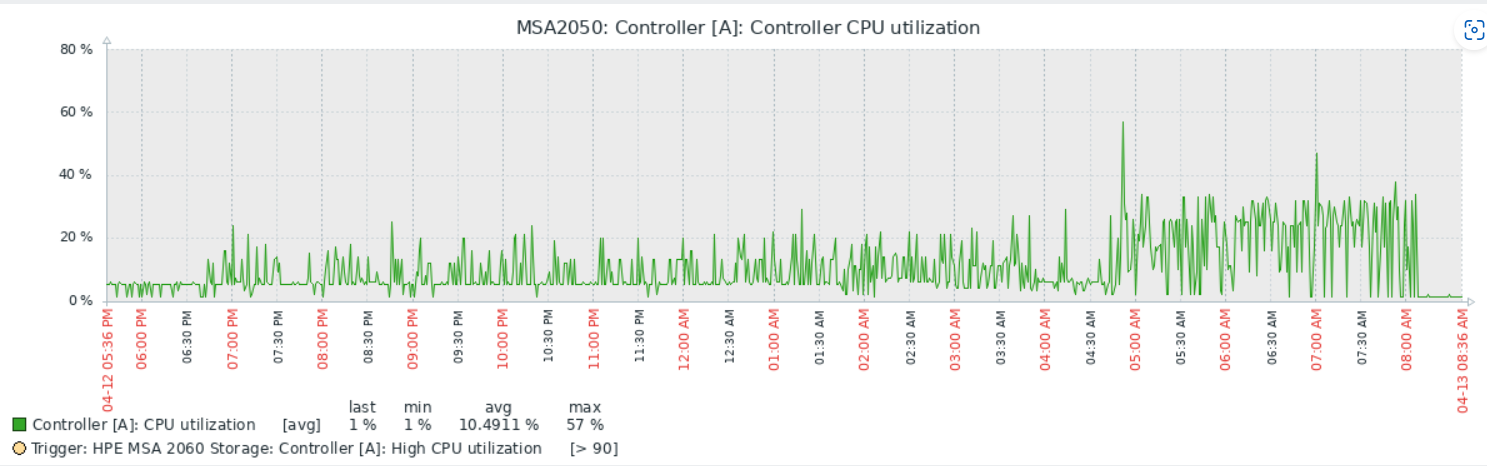

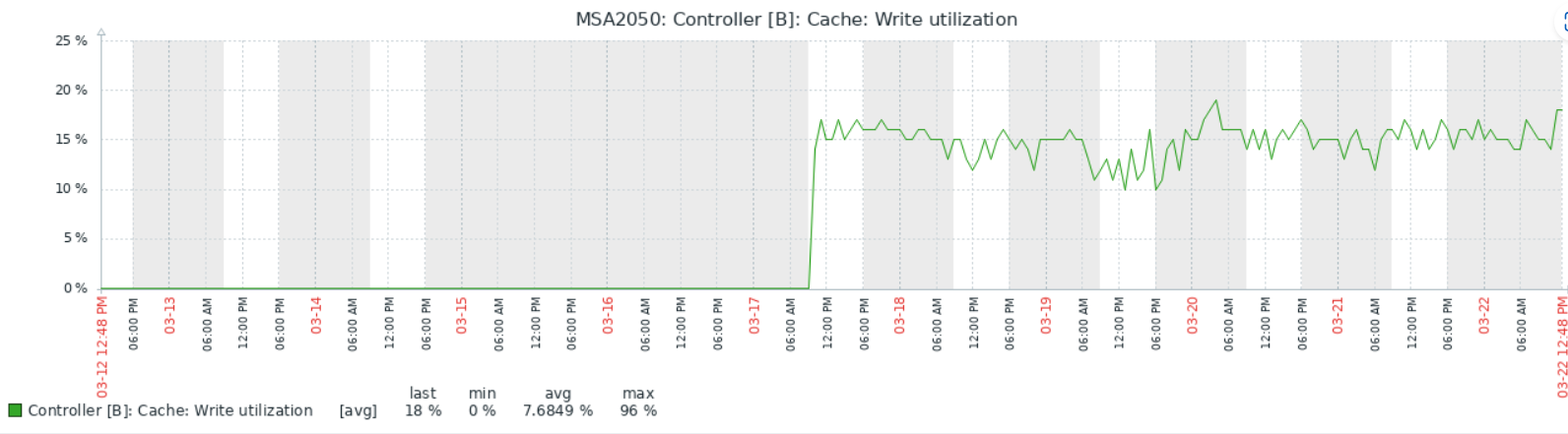

Controller A CPU load drop at VM migrationController B CPU load drop at VM migrationController A cache write utilization changeController A read cache utilizationController B read cache utilizationController B cache write utilization change

[JonPaul · Accepted solution]

@czobi
what is the configuration of the Pools, Disk-groups, volumes on the MSA?
This looks like a configuration issue on HOST1.
Are both hosts connected to both MSA controllers?
Some things to check on the MSA:
CLI>  show unwriteable-cache   ==> this would show if orphaned data is left in the cache, this happens when a volume is removed while the host is still actively using it.
CLI>  show controller-statistics   ==> look for forwarded commands,  this indicates a multipath issue where the host is using non-optimal paths to the LUNs.  The MSA will then forward the I/O internally between the controllers and causes some to significant delay and increase in CPU utilization.
You can look at the host connections with the CLI as well:
CLI> set cli-parameters json    ==> returns all data fields in JSON output, almost easy to read.  set cli-parameters console  returns the easy to read output
CLI> show initiators   ==> returns info on the initiators
  "host-port-bits-a":8,      ==>  bitmap of the connected ports from the A controller:  1 == port 1, 2 == port 2, ... 8 == port 4,  9 == port 1 and 4
  "host-port-bits-b":8     ==>  bitmap of the connected ports from the B controller:  1 == port 1, 2 == port 2, ... 8 == port 4,  9 == port 1 and 4

[czobi]

OK, here is the configuration. Both servers connected to both controllers.  See below the output of the commands  you recommend. I also attached the MPIO configuration capture for both servers. Hope these help.

---
