HPE DL360 Gen10 - NVMe upgrades

[ZhugeHPE]

Hi.

I am running Proliant DL360 Gen10 with p408i-a controller at the moment, and i have a plan to upgrade/migrate storage from SATA2.5inch to U2/U3 NVMe.

Been trying to install 1 U2 NVMe drive, but the system did not recognize the drive.

So the questions are.
1. can i upgrade the server to support U2 NVMe?
2. What HW Parts needs tobe upgraded to support U2 NVMe

Regards

[ZhugeHPE]

Will changing the current P408i-a controller to MR416i-a and keep existing backplane, can make the system compatible to U2 NVMe?

[shiva_jr]

Hi @ZhugeHPE ,

    I believe, this post will help you.

Regards,
Shiva_JR

[ZhugeHPE]

Hi
Thank you for your reply. Actually i've red the link you shared earlier before i finally decides to ask here in the forum.

And pardon me, maybe my qyestion was very unclear. So let me try again.

1. Will MR416i-a be compatible to DL360 Gen10 (without "plus")?
2. If q #1 a "yes", is there any specific parts need to be upgraded also? Like controler cables (port position is different between p408i-a and MR416i-a). And/or backplane?

I really really hope i can get information support on this. Because been trying to contact some hpe provider, but all i got is only stock availability info.

Best reagard

[shiva_jr]

Hi @ZhugeHPE ,

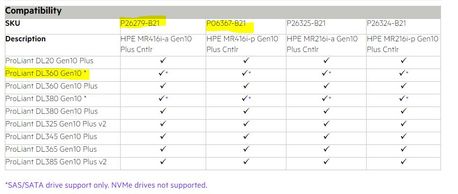

    As per the HPE document , MR416i-a plus controllers ( P26279-B21 and P06367-B21) are supported on Server DL360 Gen10 (not plus). But SAS/SATA drive support only. NVMe drives not supported.
Regards,
Shiva_JR

[support_s]

Hello,

Let us know if you were able to resolve the issue.

If you have no further query, and you are satisfied with the answer then kindly mark the topic as Solved so that it is helpful for all community members.

Please click on "Thumbs Up/Kudo" icon to give a "Kudo".

Thank you for being a HPE valuable community member.

[Ernie Cox]

Can someone please explain "SAS/SATA drive support only. NVMe drives not supported"? Why are NVMe drives not supported? The MR416i-p controller supports NVMe. Not supported because the drives will not show up in iLO? Who cares if the drives don't show up in iLO. What is the issue?
