Proliant DL580 Gen10 + ILO 5 2.44 - ILO Console issue

[Marco Correnti Techno S]

Ciao

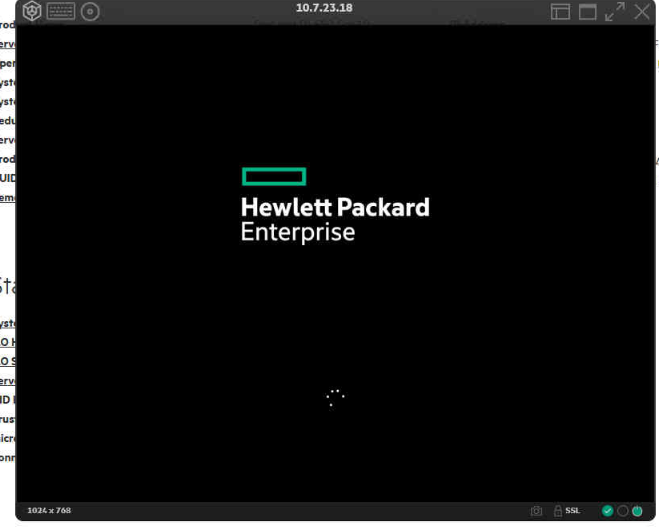

As per the subject of the thread, the ILO Console is not ready, this is what is showed

The particularity of this server is that it has 4 NVIDIA cards which could be the cause/contributory cause of this limitation.

Does anyone know if there is a solution or workaround?

Thanks in advance.

[support_s]

System recommended content:

1. Advisory: (Revision) HPE Integrated Lights-Out 5 (iLO 5) - Under Some Conditions With iLO 5 Firmware v2.55 and iLO 5 Firmware v2.60, Storage Information From iLO 5 May Not Be Available

2. Advisory: (Revision) HPE Integrated Lights-Out 5 (iLO 5) - Long Boot Times on HPE Gen10 Systems When Encryption Is Enabled on an HPE Smart Array Controller

Please click on "Thumbs Up/Kudo" icon to give a "Kudo".

Thank you for being a HPE valuable community member.

[Marco Correnti Techno S]

Thanks @support_s

Could you explain better what you suggested because I don't understand how the ILO remote console missing functionality could be dealing with

• Storage information missing (fixed in the ILO 2.60)
• Long boot times (fixed in the ILO 2.55, the same version that our Server is using ...)

Regards

EDIT : I add that the server is running fine, that the ILO is OK, all is OK, ONLY the ILO remote console is not working

[ksram]

Hi,

Thank you for the Post.

Could you please try with iLO version  2.65 and share us the results.

Best Regards,

RamKS

[Marco Correnti Techno S]

Thanks @ksram

I have read all info regarding ILO 5 from version 2.46 to 2.65 but I have not found any indication regarding our problem, may I know why you have suggested version 2.65 ?

Regards

[Marco Correnti Techno S]

Hi all

Sorry, but the ILO version the server is running is the 2.44 NOT the 2.55.

I have updated the thread name.

[ksram]

Hi Marco Correnti Techno S,

Thank you for your reply.

Its always suggested updating to the latest version, however it was suggested to test with 2.65 as it was  one of the stable versions. You may try and share the results.

Thank you
RamKS

[Marco Correnti Techno S · Accepted solution]

Thank you again @ksram

I have received new information that I was not aware of, the Internal Matrox VGA has been disabled for stability, performance and others reasons, the logo showed is the one of the OEM Windows installed.

So this thread can be closed.

Ciao

[ksram]

Hi,

Thank you

RamKS
