DL360p Gen8 ilo IP-address


Eugene2012
Advisor

DL360p Gen8 ilo IP-address

Hello,

how can I set ip-address for iLO DL360p Gen8?

Thanks.

10 REPLIES 10
Torsten.
Acclaimed Contributor

Re: DL360p Gen8 ilo IP-address

Press F8 during boot once the ILO appears.


Hope this helps!
Regards
Torsten.

__________________________________________________
There are only 10 types of people in the world -
those who understand binary, and those who don't.

__________________________________________________
No support by private messages. Please ask the forum!

If you feel this was helpful please click the KUDOS! thumb below!
support_s
System Recommended

Query: DL360p Gen8 ilo IP-address

System recommended content:

1. Advisory: ProLiant DL360p Gen8 Server - Incorrect HP Integrated Lights-Out 4 (iLO 4) IP Address Is Displayed at Power-On Self-Test (POST) if the iLO IP Address Only Contains 4 or 5 Digits



Please click on "Thumbs Up/Kudo" icon to give a "Kudo".



Thank you for being a HPE valuable community member.


Accept or Kudo

Eugene2012
Advisor

Re: DL360p Gen8 ilo IP-address

Without change.

F8 it's for logical drives menu.

Torsten.
Acclaimed Contributor

Re: DL360p Gen8 ilo IP-address

First-steps-configuring-HP-Microserver-Gen8-9


Hope this helps!
Regards
Torsten.

__________________________________________________
There are only 10 types of people in the world -
those who understand binary, and those who don't.

__________________________________________________
No support by private messages. Please ask the forum!

If you feel this was helpful please click the KUDOS! thumb below!
Eugene2012
Advisor

Re: DL360p Gen8 ilo IP-address

I have F9, F10, F11, and don't have F8 to configure iLo. I didn't catch such option.

Torsten.
Acclaimed Contributor

Re: DL360p Gen8 ilo IP-address

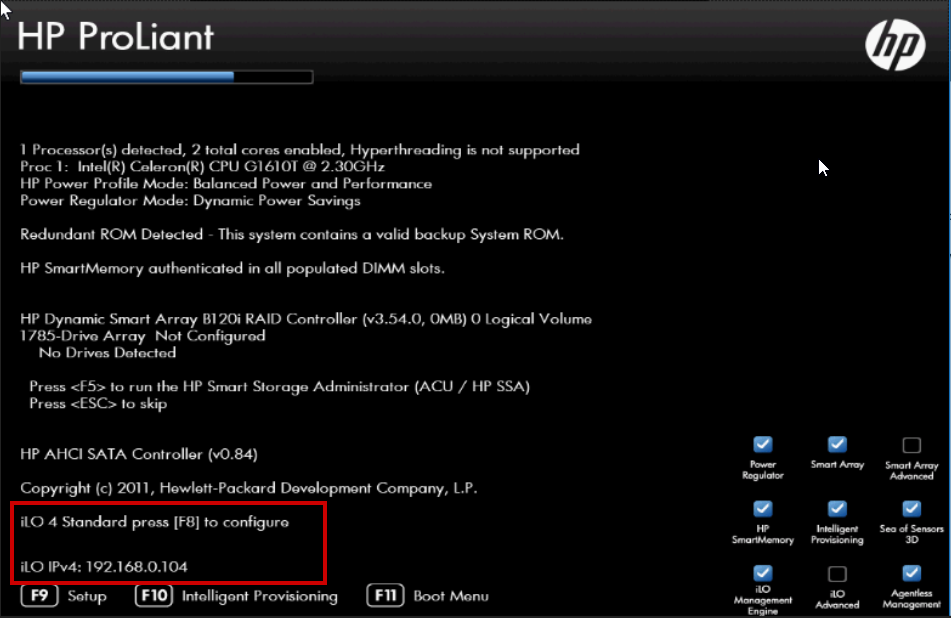

You should see a similar screen like the image I've posted.


Hope this helps!
Regards
Torsten.

__________________________________________________
There are only 10 types of people in the world -
those who understand binary, and those who don't.

__________________________________________________
No support by private messages. Please ask the forum!

If you feel this was helpful please click the KUDOS! thumb below!
Eugene2012
Advisor

Re: DL360p Gen8 ilo IP-address

No, I see the string:

Press <F8> to run the Option ROM Configuration for Arrays Utility

Eugene2012
Advisor

Re: Query: DL360p Gen8 ilo IP-address

It`s interesting, and how in that case iLO IP-adr setting, which press Fx ?

Torsten.
Acclaimed Contributor

Re: Query: DL360p Gen8 ilo IP-address

If you don't see ILO in POST at all, ILO might be dead.


Hope this helps!
Regards
Torsten.

__________________________________________________
There are only 10 types of people in the world -
those who understand binary, and those who don't.

__________________________________________________
No support by private messages. Please ask the forum!

If you feel this was helpful please click the KUDOS! thumb below!
Eugene2012
Advisor

Re: Query: DL360p Gen8 ilo IP-address

@Torsten.

Maybe, and what can I do for it?
