How to get HBA card location from HP-UX OS

[Ashraf1]

Hi All,

I need help for collectiong the HBA card location from OS end. Here  system is Superdome-2 32s, OS : HP-UX 11.31

Please assist on this issue .

[Torsten.]

Try this:

-# ioscan -m resourcepath

H/W Path               Physical location               Resource path

====================================================================

0                       0x100ff01ffffff94              blade-1/1

0/0/0                   0x1000100ffffff8e               iorc-1/1/0/0

0/0/0/0/0               0x100010000ffff8e               iorp-1/1/0/0/0

0/0/0/0/0/0             0x10001000004ff88               ioslot-1/1/4

0/0/0/2/0               0x100010002ffff8e               iorp-1/1/0/0/2

0/0/0/2/0/0             0x10001000205ff88               ioslot-1/1/5

0/0/1                   0x1000101ffffff8e               iorc-1/1/0/1

0/0/1/0/0               0x100010100ffff8e               iorp-1/1/0/1/0

0/0/1/0/0/0             0x10001010001ff85               ioslot-1/1/1

0/0/1/2/0               0x100010102ffff8e               iorp-1/1/0/1/2

0/0/1/2/0/0             0x10001010202ff85               ioslot-1/1/2

...

42                     0xa0001ffff00ff8e               iohub-10/1/0

42/0/0                 0xa000100ffffff8e               iorc-10/1/0/0

42/0/0/0/0             0xa00010000ffff8e               iorp-10/1/0/0/0

42/0/0/0/0/0            0xa0001000004ff85               ioslot-10/1/4

42/0/0/2/0             0xa00010002ffff8e               iorp-10/1/0/0/2

42/0/0/2/0/0           0xa0001000203ff85               ioslot-10/1/3

42/0/1                 0xa000101ffffff8e               iorc-10/1/0/1

...

[Ashraf1]

Hi Torsten,

Thanks for your prompt response.

I have shared some info collected from OS

bash-4.3# ioscan -m resourcepath
H/W Path Physical location Resource path
====================================================================
0             0x100ff01ffffff94      blade-1/1
0/0/0      0x1000100ffffff8e     iorc-1/1/0/0
0/0/0/0/0 0x100010000ffff8e iorp-1/1/0/0/0
0/0/0/0/0/0 0x10001000004ff88 ioslot-1/1/4
0/0/1 0x1000101ffffff8e iorc-1/1/0/1
0/0/2 0x1000102ffffff8e iorc-1/1/0/2

1 0x100ff02ffffff94 blade-1/2
1/0/0 0x1000200ffffff8e iorc-1/2/0/0
1/0/0/0/0 0x100020000ffff8e iorp-1/2/0/0/0
1/0/0/0/0/0 0x10002000004ff88 ioslot-1/2/4
1/0/1 0x1000201ffffff8e iorc-1/2/0/1
1/0/2 0x1000202ffffff8e iorc-1/2/0/2

2 0x100ff03ffffff94 blade-1/3
2/0/0 0x1000300ffffff8e iorc-1/3/0/0
2/0/1 0x1000301ffffff8e iorc-1/3/0/1
2/0/2 0x1000302ffffff8e iorc-1/3/0/2

3 0x100ff04ffffff94 blade-1/4
3/0/0 0x1000400ffffff8e iorc-1/4/0/0
3/0/1 0x1000401ffffff8e iorc-1/4/0/1
3/0/2 0x1000402ffffff8e iorc-1/4/0/2
3/120 0x100ff04ff000017 cpucore-1/4/0/0
3/122 0x100ff04ff000117 cpucore-1/4/0/1
3/124 0x100ff04ff000217 cpucore-1/4/0/2
3/126 0x100ff04ff000317 cpucore-1/4/0/3
3/136 0x100ff04ff010017 cpucore-1/4/1/0
3/138 0x100ff04ff010117 cpucore-1/4/1/1
3/140 0x100ff04ff010217 cpucore-1/4/1/2
3/142 0x100ff04ff010317 cpucore-1/4/1/3

4 0x100ff05ffffff94 blade-1/5
4/0/0 0x1000500ffffff8e iorc-1/5/0/0
4/0/1 0x1000501ffffff8e iorc-1/5/0/1
4/0/2 0x1000502ffffff8e iorc-1/5/0/2
4/136 0x100ff05ff010017 cpucore-1/5/1/0
4/138 0x100ff05ff010117 cpucore-1/5/1/1
4/140 0x100ff05ff010217 cpucore-1/5/1/2
4/142 0x100ff05ff010317 cpucore-1/5/1/3

5 0x100ff06ffffff94 blade-1/6
5/0/0 0x1000600ffffff8e iorc-1/6/0/0
5/0/1 0x1000601ffffff8e iorc-1/6/0/1
5/0/2 0x1000602ffffff8e iorc-1/6/0/2
5/136 0x100ff06ff010017 cpucore-1/6/1/0
5/138 0x100ff06ff010117 cpucore-1/6/1/1
5/140 0x100ff06ff010217 cpucore-1/6/1/2
5/142 0x100ff06ff010317 cpucore-1/6/1/3
32 0x50001ffff00ff8e iohub-5/1/0
32/0/0 0x5000100ffffff8e iorc-5/1/0/0
32/0/1 0x5000101ffffff8e iorc-5/1/0/1
32/0/2 0x5000102ffffff8e iorc-5/1/0/2

33 0x50002ffff00ff8e iohub-5/2/0
33/0/0 0x5000200ffffff8e iorc-5/2/0/0
33/0/1 0x5000201ffffff8e iorc-5/2/0/1
33/0/1/0/0 0x500020100ffff8e iorp-5/2/0/1/0
33/0/1/0/0/0 0x50002010005ff85 ioslot-5/2/5
33/0/2 0x5000202ffffff8e iorc-5/2/0/2
33/0/2/2/0 0x500020202ffff8e iorp-5/2/0/2/2
33/0/2/2/0/0 0x50002020202ff85 ioslot-5/2/2

34 0x60001ffff00ff8e iohub-6/1/0
34/0/0 0x6000100ffffff8e iorc-6/1/0/0
34/0/1 0x6000101ffffff8e iorc-6/1/0/1
34/0/2 0x6000102ffffff8e iorc-6/1/0/2

35 0x60002ffff00ff8e iohub-6/2/0
35/0/0 0x6000200ffffff8e iorc-6/2/0/0
35/0/1 0x6000201ffffff8e iorc-6/2/0/1
35/0/1/0/0 0x600020100ffff8e iorp-6/2/0/1/0
35/0/1/0/0/0 0x60002010005ff85 ioslot-6/2/5
35/0/2 0x6000202ffffff8e iorc-6/2/0/2
35/0/2/2/0      0x600020202ffff8e      iorp-6/2/0/2/2
35/0/2/2/0/0 0x60002020202ff85     ioslot-6/2/2

From the above output, how to find memory location (i.e blade:cpu socet:memory location), CPU location , LAN card , HBA card.

Please explain details..

[Torsten.]

Let's see

# ioscan -fnClan
Class I H/W Path Driver S/W State H/W Type Description
========================================================================

lan 16 40/0/0/0/0/0/0/2/0/0/0 iether CLAIMED INTERFACE HP AD222-60001 PCIe 1000Base-T 2-port 4Gb FC/2-port 1000B-T Combo Adapter

lan 17 40/0/0/0/0/0/0/2/0/0/1 iether CLAIMED INTERFACE HP AD222-60001 PCIe 1000Base-T 2-port 4Gb FC/2-port 1000B-T Combo Adapter

Path "40/0/..." is BIOX 9 bay 1, ioslot 9/1/4 which means enclosure 9, bay 1, slot 4

40                     0xa0001ffff00ff8e               iohub-9/1/0

40/0/0                 0xa000100ffffff8e               iorc-9/1/0/0

40/0/0/0/0             0xa00010000ffff8e               iorp-9/1/0/0/0

40/0/0/0/0/0            0xa0001000004ff85               ioslot-9/1/4

So lan16 and lan17 are the 2 ports of a combo card at this location.

Path "0/..." is the first blade, path "1/..." the second blade etc ...

For your blades:

5 0x100ff06ffffff94 blade-1/6

this is the blade in enclosure 1 slot 6

For the CPU

5/136 0x100ff06ff010017 cpucore-1/6/1/0
5/138 0x100ff06ff010117 cpucore-1/6/1/1
5/140 0x100ff06ff010217 cpucore-1/6/1/2
5/142 0x100ff06ff010317 cpucore-1/6/1/3

this is enclosure 1 / bay 6 / socket 1 / core 0 to 4 (single 4-core CPU).

[Ashraf1]

Hi Tordten,

Thanks for your valuable info.

Please check the bellow info and assit on the colored line.

bash-4.3# ioscan -m resourcepath
H/W Path Physical location Resource path
====================================================================
0 0x100ff01ffffff94 blade-1/1
0/0/0 0x1000100ffffff8e iorc-1/1/0/0
0/0/0/0/0 0x100010000ffff8e iorp-1/1/0/0/0
0/0/0/0/0/0 0x10001000004ff88 ioslot-1/1/4
0/0/1 0x1000101ffffff8e iorc-1/1/0/1
0/0/2 0x1000102ffffff8e iorc-1/1/0/2
1 0x100ff02ffffff94 blade-1/2
1/0/0 0x1000200ffffff8e iorc-1/2/0/0
1/0/0/0/0 0x100020000ffff8e iorp-1/2/0/0/0
1/0/0/0/0/0 0x10002000004ff88 ioslot-1/2/4
1/0/1 0x1000201ffffff8e iorc-1/2/0/1
1/0/2 0x1000202ffffff8e iorc-1/2/0/2
2 0x100ff03ffffff94 blade-1/3
2/0/0 0x1000300ffffff8e iorc-1/3/0/0
2/0/1 0x1000301ffffff8e iorc-1/3/0/1
2/0/2 0x1000302ffffff8e iorc-1/3/0/2
3 0x100ff04ffffff94 blade-1/4
3/0/0 0x1000400ffffff8e iorc-1/4/0/0
3/0/1 0x1000401ffffff8e iorc-1/4/0/1
3/0/2 0x1000402ffffff8e iorc-1/4/0/2
3/120 0x100ff04ff000017 cpucore-1/4/0/0
3/122 0x100ff04ff000117 cpucore-1/4/0/1
3/124 0x100ff04ff000217 cpucore-1/4/0/2
3/126 0x100ff04ff000317 cpucore-1/4/0/3
3/136 0x100ff04ff010017 cpucore-1/4/1/0
3/138 0x100ff04ff010117 cpucore-1/4/1/1
3/140 0x100ff04ff010217 cpucore-1/4/1/2
3/142 0x100ff04ff010317 cpucore-1/4/1/3
4 0x100ff05ffffff94 blade-1/5
4/0/0 0x1000500ffffff8e iorc-1/5/0/0
4/0/1 0x1000501ffffff8e iorc-1/5/0/1
4/0/2 0x1000502ffffff8e iorc-1/5/0/2
4/136 0x100ff05ff010017 cpucore-1/5/1/0
4/138 0x100ff05ff010117 cpucore-1/5/1/1
4/140 0x100ff05ff010217 cpucore-1/5/1/2
4/142 0x100ff05ff010317 cpucore-1/5/1/3
5 0x100ff06ffffff94 blade-1/6
5/0/0 0x1000600ffffff8e iorc-1/6/0/0
5/0/1 0x1000601ffffff8e iorc-1/6/0/1
5/0/2 0x1000602ffffff8e iorc-1/6/0/2
5/136 0x100ff06ff010017 cpucore-1/6/1/0
5/138 0x100ff06ff010117 cpucore-1/6/1/1
5/140 0x100ff06ff010217 cpucore-1/6/1/2
5/142 0x100ff06ff010317 cpucore-1/6/1/3
32 0x50001ffff00ff8e iohub-5/1/0
32/0/0 0x5000100ffffff8e iorc-5/1/0/0
32/0/1 0x5000101ffffff8e iorc-5/1/0/1
32/0/2 0x5000102ffffff8e iorc-5/1/0/2
33 0x50002ffff00ff8e iohub-5/2/0
33/0/0 0x5000200ffffff8e iorc-5/2/0/0
33/0/1 0x5000201ffffff8e iorc-5/2/0/1
33/0/1/0/0 0x500020100ffff8e iorp-5/2/0/1/0
33/0/1/0/0/0 0x50002010005ff85 ioslot-5/2/5
33/0/2 0x5000202ffffff8e iorc-5/2/0/2
33/0/2/2/0 0x500020202ffff8e iorp-5/2/0/2/2
33/0/2/2/0/0 0x50002020202ff85 ioslot-5/2/2
34 0x60001ffff00ff8e iohub-6/1/0
34/0/0 0x6000100ffffff8e iorc-6/1/0/0
34/0/1 0x6000101ffffff8e iorc-6/1/0/1
34/0/2 0x6000102ffffff8e iorc-6/1/0/2
35 0x60002ffff00ff8e iohub-6/2/0
35/0/0 0x6000200ffffff8e iorc-6/2/0/0
35/0/1 0x6000201ffffff8e iorc-6/2/0/1
35/0/1/0/0 0x600020100ffff8e iorp-6/2/0/1/0
35/0/1/0/0/0 0x60002010005ff85 ioslot-6/2/5
35/0/2 0x6000202ffffff8e iorc-6/2/0/2
35/0/2/2/0 0x600020202ffff8e iorp-6/2/0/2/2
35/0/2/2/0/0 0x60002020202ff85 ioslot-6/2/2

------------------------------------------------------------------------------------
CPU Info:

3/120 0x100ff04ff000017 cpucore-1/4/0/0 -->Enclosure-1, blade-4, soket-0, core-0
3/122 0x100ff04ff000117 cpucore-1/4/0/1
3/124 0x100ff04ff000217 cpucore-1/4/0/2
3/126 0x100ff04ff000317 cpucore-1/4/0/3
3/136 0x100ff04ff010017 cpucore-1/4/1/0
3/138 0x100ff04ff010117 cpucore-1/4/1/1
3/140 0x100ff04ff010217 cpucore-1/4/1/2
3/142 0x100ff04ff010317 cpucore-1/4/1/3

4/136 0x100ff05ff010017 cpucore-1/5/1/0
4/138 0x100ff05ff010117 cpucore-1/5/1/1
4/140 0x100ff05ff010217 cpucore-1/5/1/2
4/142 0x100ff05ff010317 cpucore-1/5/1/3

5/136 0x100ff06ff010017 cpucore-1/6/1/0
5/138 0x100ff06ff010117 cpucore-1/6/1/1
5/140 0x100ff06ff010217 cpucore-1/6/1/2
5/142 0x100ff06ff010317 cpucore-1/6/1/3

Total core:16

-------------
bash-4.3#
---------------------------------------------------------------------------
bash-4.3# ioscan -fnC fc
Class I H/W Path Driver S/W State H/W Type Description
======================================================================
fc 0 33/0/2/2/0/0/0 fcd CLAIMED INTERFACE HP SN1000Q 16Gb Dual Port PCIe Fibre Channel Adapter (FC Port 1)
/dev/fcd0
fc 1 33/0/2/2/0/0/1 fcd CLAIMED INTERFACE HP SN1000Q 16Gb Dual Port PCIe Fibre Channel Adapter (FC Port 2)
/dev/fcd1
fc 2 35/0/2/2/0/0/0 fcd CLAIMED INTERFACE HP SN1000Q 16Gb Dual Port PCIe Fibre Channel Adapter (FC Port 1)
/dev/fcd2
fc 3 35/0/2/2/0/0/1 fcd CLAIMED INTERFACE HP SN1000Q 16Gb Dual Port PCIe Fibre Channel Adapter (FC Port 2)
/dev/fcd3

33/0/2 0x5000202ffffff8e iorc-5/2/0/2 --> ?
33/0/2/2/0 0x500020202ffff8e iorp-5/2/0/2/2 --> ?
33/0/2/2/0/0 0x50002020202ff85 ioslot-5/2/2 -->IOX-5, bay-2, slot-2

35/0/2 0x6000202ffffff8e iorc-6/2/0/2 --> ?
35/0/2/2/0 0x600020202ffff8e iorp-6/2/0/2/2 --> ?
35/0/2/2/0/0 0x60002020202ff85 ioslot-6/2/2 -->IOX-6, bay-2, slot-2

bash-4.3# ioscan -fnC lan
Class I H/W Path Driver S/W State H/W Type Description
========================================================================
lan 12 0/0/0/0/0/0/0 iexgbe CLAIMED INTERFACE HP PCIe 2-p 10GbE Built-in
lan 13 0/0/0/0/0/0/1 iexgbe CLAIMED INTERFACE HP PCIe 2-p 10GbE Built-in
lan 14 1/0/0/0/0/0/0 iexgbe CLAIMED INTERFACE HP PCIe 2-p 10GbE Built-in
lan 15 1/0/0/0/0/0/1 iexgbe CLAIMED INTERFACE HP PCIe 2-p 10GbE Built-in
lan 0 33/0/1/0/0/0/0/2/0/0/0 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 1 33/0/1/0/0/0/0/2/0/0/1 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 2 33/0/1/0/0/0/0/4/0/0/0 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 3 33/0/1/0/0/0/0/4/0/0/1 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 4 35/0/1/0/0/0/0/2/0/0/0 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 5 35/0/1/0/0/0/0/2/0/0/1 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 6 35/0/1/0/0/0/0/4/0/0/0 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter
lan 7 35/0/1/0/0/0/0/4/0/0/1 iether CLAIMED INTERFACE HP AD339-60001 PCIe 1000Base-T 4-port 1000B-T Adapter

External card:
--------------
33 0x50002ffff00ff8e iohub-5/2/0 --> ?
33/0/0 0x5000200ffffff8e iorc-5/2/0/0 --> ?
33/0/1 0x5000201ffffff8e iorc-5/2/0/1 --> ?
33/0/1/0/0 0x500020100ffff8e iorp-5/2/0/1/0 --> ?
33/0/1/0/0/0 0x50002010005ff85 ioslot-5/2/5 -->IOX-5, bay-2, slot-5

35 0x60002ffff00ff8e iohub-6/2/0
35/0/0 0x6000200ffffff8e iorc-6/2/0/0
35/0/1 0x6000201ffffff8e iorc-6/2/0/1
35/0/1/0/0 0x600020100ffff8e iorp-6/2/0/1/0
35/0/1/0/0/0 0x60002010005ff85 ioslot-6/2/5

Built in card in Blade:
-----------------------
0 0x100ff01ffffff94 blade-1/1 -->enclosure-1, blade-1
0/0/0 0x1000100ffffff8e iorc-1/1/0/0 --> ?
0/0/0/0/0 0x100010000ffff8e iorp-1/1/0/0/0 --> ?
0/0/0/0/0/0 0x10001000004ff88 ioslot-1/1/4 --> ?
0/0/1 0x1000101ffffff8e iorc-1/1/0/1
0/0/2 0x1000102ffffff8e iorc-1/1/0/2
1 0x100ff02ffffff94 blade-1/2
1/0/0 0x1000200ffffff8e iorc-1/2/0/0
1/0/0/0/0 0x100020000ffff8e iorp-1/2/0/0/0
1/0/0/0/0/0 0x10002000004ff88 ioslot-1/2/4
1/0/1 0x1000201ffffff8e iorc-1/2/0/1
1/0/2 0x1000202ffffff8e iorc-1/2/0/2

[Torsten.]

33 0x50002ffff00ff8e iohub-5/2/0 --> ?
33/0/0 0x5000200ffffff8e iorc-5/2/0/0 --> ?
33/0/1 0x5000201ffffff8e iorc-5/2/0/1 --> ?
33/0/1/0/0 0x500020100ffff8e iorp-5/2/0/1/0 --> ?
33/0/1/0/0/0 0x50002010005ff85 ioslot-5/2/5 -->IOX-5, bay-2, slot-5

These are the internal components down to the path to the I/O slot.

0/0/0/0/0/0 0x10001000004ff88 ioslot-1/1/4 --> ?

This is one path to the LOM, the built-in LAN (dual NIC). The other is 1/1/5.

[Ashraf1]

Hi Torsten,

Thanks for message

Please check the bellow output and please mention which port is online and how to detect from here port is offline or online

35/0/2 0x6000202ffffff8e iorc-6/2/0/2
35/0/2/2/0 0x600020202ffff8e iorp-6/2/0/2/2
35/0/2/2/0/0 0x60002020202ff85 ioslot-6/2/2

Please also explain what do mean by iorc, iorp,iohub.

[Torsten.]

35/0/2 0x6000202ffffff8e iorc-6/2/0/2
35/0/2/2/0 0x600020202ffff8e iorp-6/2/0/2/2
35/0/2/2/0/0 0x60002020202ff85 ioslot-6/2/2

fc 2 35/0/2/2/0/0/0 fcd CLAIMED INTERFACE HP SN1000Q 16Gb Dual Port PCIe Fibre Channel Adapter (FC Port 1)
/dev/fcd2
fc 3 35/0/2/2/0/0/1 fcd CLAIMED INTERFACE HP SN1000Q 16Gb Dual Port PCIe Fibre Channel Adapter (FC Port 2)
/dev/fcd3

This is a dual port FC adapter.

Try

# fcmsutil /dev/fcd2

# fcmsutil /dev/fcd3

to get the details.

>> Please also explain what do mean by iorc, iorp,iohub.

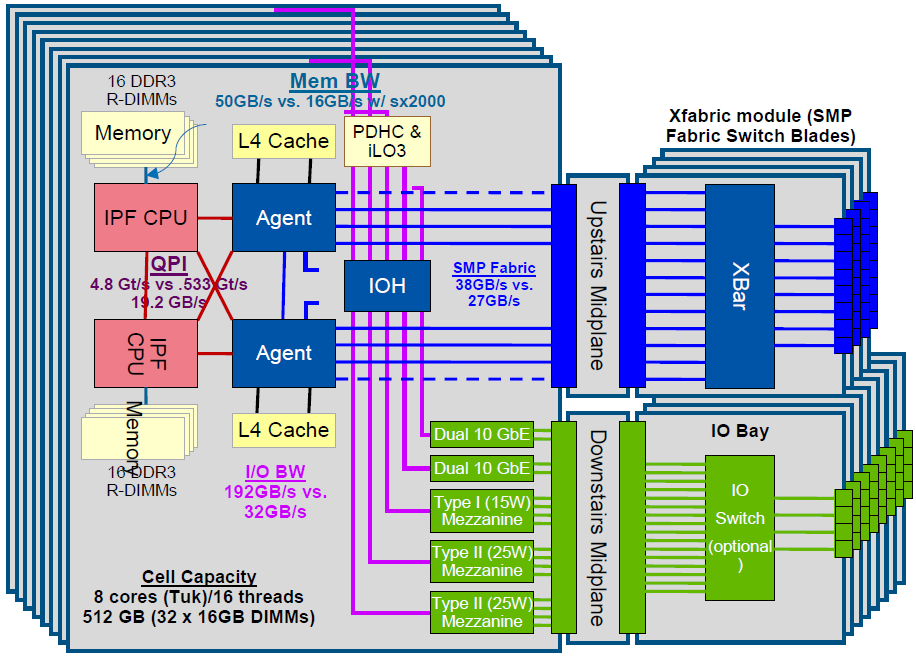

These are several I/O components/controllers (PCI-to-PCI bridges, etc) between the chipset and the slots.

For example see

(from http://www.qdpma.com/SystemArchitecture/NUMA.html )

[Ashraf1]

Hi Torsten,

Thanks...

Yes, I got it by command fcmsutil /deb/fcd2

Have any difference between   iorc-6/2/0/2  &  iorp-6/2/0/2/2   and what is the exact meaning for iorc and iorp.

I don't find meaning in website.

[Torsten.]

As said, the components / controllers / bus adapters between the chipset and the I/O slot, see

( http://www.qdpma.com/SystemArchitecture/NUMA.html )
