Can't install Windows 2016 on DL20 Gen9

[rktho]

During the windows 2016 fresh installation, no partition is detected and no configuration can be made so the

installation on DL20 Gen9 can't go further. Please advise.

Array setup:

Smart HBA H240

RAID 1 with 2 x 500GB SSD

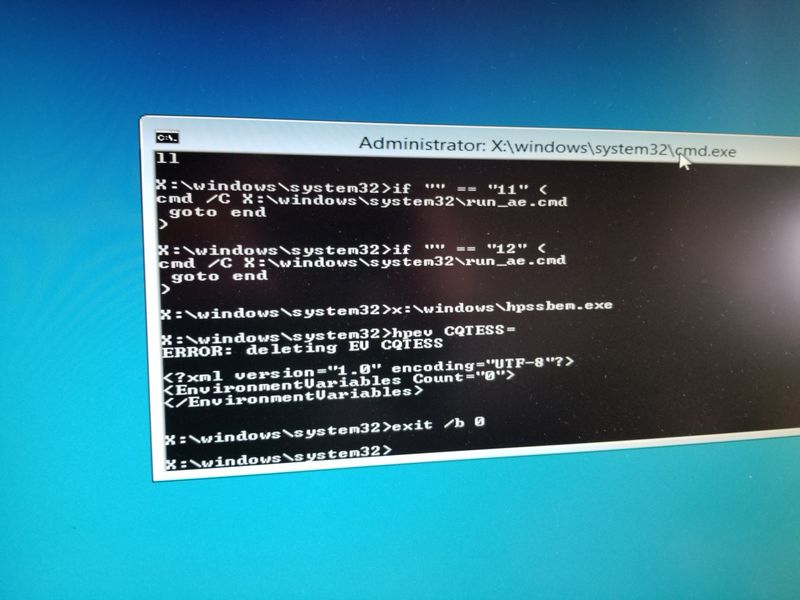

5 images:

https://h30434.www3.hp.com/t5/image/serverpage/image-id/241204iEC2863F419CC4152/image-size/large?v=1.0&px=999

https://h30434.www3.hp.com/t5/image/serverpage/image-id/241202i3E2995A36C5DD743/image-size/large?v=1.0&px=999

https://h30434.www3.hp.com/t5/image/serverpage/image-id/241205iAA8562D722E62547/image-size/large?v=1.0&px=999

https://h30434.www3.hp.com/t5/image/serverpage/image-id/241203iC8E3C0128E17E265/image-size/large?v=1.0&px=999

https://h30434.www3.hp.com/t5/image/serverpage/image-id/241206i0AF8AE4358BFBD8D/image-size/large?v=1.0&px=999

[ksram]

Hi,

Please confirm in which mode the H240 is running : HBA mode or simple RAID mode

How was RAID Created?

Are you able to see the RAID from SSA - Smart Storage Administrator?

Thank you

KSRam

[rktho]

Hi KSRam,

I guess I have created a simple RAID 1 from 2 x samsung 860 EVO SSD in Smart Storage Administrator (SSA) for a 500GB logical drive.

1 Logical device is shown under the controller devcies(Smart HBA H240 - Slot 2) in SSA 3.10.3.0

Thanks for your response.

rktho

[ksram]

Hi,

Please try to install Manually and check.

Keep the Driver downlaoded ready : https://support.hpe.com/hpsc/swd/public/detail?swItemId=MTX_90b6d3b309174d6f86065034ff&swEnvOid=4231#tab-history during installation.
You may need to inject the file manually.

Thank you

[ksram]

Hi,

To add we understad that Windows 2008 was installed successfully.

If possible try downloading a new windows 2016 installation files and try a fresh installation.

Thank you

[rktho · Accepted solution]

Thanks for your inputs.

I have managed to create the USB Key Utility for windows ISO installation via Intelligent Provisioning.

Drivers & software
USB Key Utility for Windows

https://support.hpe.com/hpsc/swd/public/detail?swItemId=MTX_360731071b404454b454390208#tab2

[ksram]

Hi,

Thats great!

Thank you for the update

[Awangku]

A late reply, but I hope this could help anyone who is facing this issue.

I had the same exact issue and have been troubleshooting for the past day, and below solution is what worked for me:

Simply extract RAID Controller Driver to your bootable USB. And, during windows installation > choose disk window, click "Browse" and install the extracted driver.

Driver download link:

ProLiant DL20 G9 - https://support.hpe.com/connect/s/softwaredetails?language=en_US&softwareId=MTX_ae53a398a9c74968aef2d220f2
