Containerizing HPC applications is a part of the modern way of HPC workload management use, especially for MPI-based applications. This blog explores the idea of HPC containerization in more detail.

 By A. Yuvaraja, Apps Modernization Delivery Head, RPS, HPE Services; and Priyank Rupareliya, Technical Consultant, RPS, HPE Services

Parallel computing has become increasingly essential in the world of scientific research and high-performance computing. The Message Passing Interface (MPI) is a widely used standard for parallel programming, allowing researchers and developers to harness the power of distributed computing.

In this blog post, we'll provide a perspective on containerizing MPI-based applications and deploying a cluster using Docker swarm to run complex, multi-node workloads.

We'll also discuss the advantages of containerization and how to run performance benchmark comparison between containerized and non-containerized MPI applications.

Containerizing HPC applications with suitable MPI libraries

What is MPI and what are some of its alternatives?

Message Passing Interface is a standardized and portable message-passing system designed to facilitate communication and coordination among processes in parallel and distributed computing environments. It is commonly used in high-performance computing (HPC) and supercomputing systems to enable efficient communication between nodes in a cluster or across a network. MPI allows processes to exchange data and synchronize their execution in a parallel application.

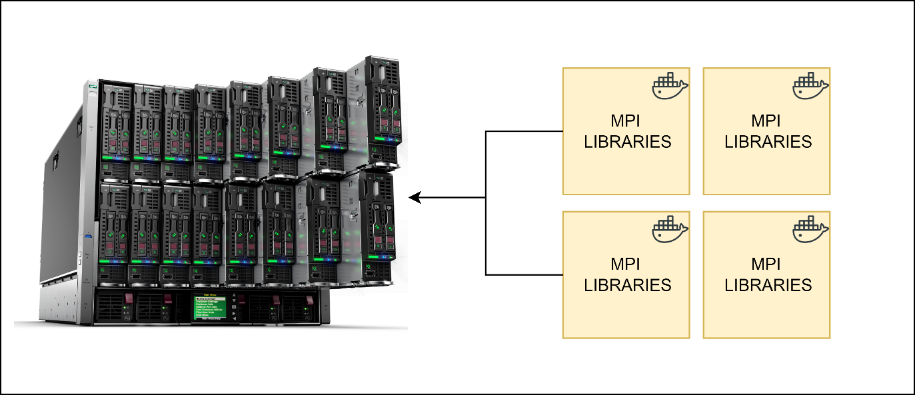

How MPI Libraries communicate with different OS components and Hardware

While MPI is a widely used and well-established standard for parallel and distributed computing, there are some alternative programming models and libraries such the following:

• OpenMP: Open Multi-Processing is a shared-memory parallel programming model. It simplifies parallelization by adding directives to existing code to specify parallel regions. OpenMP is suitable for multi-core processors and is often used in tasks that involve parallelism within a single node.
• CUDA: This is a parallel computing platform and application programming interface (API) developed by NVIDIA. It is used for GPU programming and is particularly well-suited for tasks that can be highly parallelized, such as graphics processing, scientific simulations, and deep learning.
• OpenCL: This is an open standard for parallel programming of heterogeneous systems, which can include CPUs, GPUs, and other accelerators. It offers a way to write programs that can take advantage of a variety of computing devices.
• Pthreads: POSIX Threads (Pthreads) is a standard for thread programming in Unix-like operating systems. It allows programmers to create and manage multiple threads within a single process, enabling shared-memory parallelism.
• Charm++: This is a parallel programming model and runtime system that focuses on adaptive and migratable parallelism. It is designed for irregular and dynamic applications and can scale efficiently across distributed systems.
• UPC and UPC++: Unified Parallel C (UPC) and UPC++ are extensions of the C and C++ programming languages, respectively, designed for high-performance parallel computing. They provide a shared-memory-like programming model for distributed memory systems.

However, it is important to note that these libraries do not support communication spanning different hosts, thus making MPI the most suitable choice for HPC clusters. Many HPC applications use a combination of these models and libraries to achieve the desired level of parallelism and performance. In this blog, we will be focussing purely on containerizing HPC applications running on MPI implementation.

HPC because they are compute intensive. Applications that deal with training AI models, running chemical simulations, forecasting weather, processing large amounts of data are among a few to list.

The need for containerizing MPI-based HPC applications

MPI Applications are generally utilized in the context of HPC because they are compute intensive. Applications that deal with training AI models, running chemical simulations, forecasting weather, processing large amounts of data are among a few to list.

Containerization is the first step to support running such massive workloads on any platform of choice. It simplifies the process of deploying the applications on platforms such as Kubernetes, Docker Swarm, EKS or Rancher, which can scale up and down depending on the workload. This can save cost, run across different host operating systems, and allow room for flexibility in terms of hardware.

Steps to prepare a lean base image with the correct MPI Implementation which could be used to containerize one or more applications

Different MPI Implementations and our choice

There are several different implementations of MPI available, each with its own features, optimizations, and compatibility with different hardware and software environments. Some of the most well-known MPI implementations include:

1. Open MPI: An open-source implementation that supports various network interconnects and is widely used in both research and industry.
2. MPICH: Another open-source implementation known for its high performance and portability across different platforms.
3. Intel MPI: A commercial implementation optimized for Intel processors, offering excellent performance on Intel-based clusters.

Aspect	Open MPI	MPICH	Intel MPI	MVAPICH2
Open-Source	Yes	Yes	No	Yes
Community Support	Strong	Strong	Limited	Strong
Portability	High	High	High	High
Vendor-Optimized	No	No	Yes	No
GPU Support	Yes	Yes	Yes	Yes
CPU Support (AMD)	Yes	Yes	Yes	Yes
CPU Support (Intel)	Yes	Yes	Yes	Yes
Scalability	Good	Good	Excellent	Excellent

For our purpose, we will be using MPICH since it is well maintained and up to date with the latest MPI standards.

Advantages of containerizing MPI applications

Containerizing MPI-based applications offers several advantages compared to not containerizing them. These advantages stem from the isolation and portability that containers provide. Here are some of the key benefits:

1. Portability: Containers encapsulate the application and all its dependencies, ensuring that it runs consistently across different environments. This portability is especially valuable in heterogeneous HPC clusters and cloud computing, where the underlying infrastructure may vary. Without containers, adapting MPI applications to different environments can be complex and time-consuming.
2. Dependency management: Containerization allows you to package all required libraries, dependencies, and runtime environments alongside the MPI application. This eliminates conflicts between different versions of libraries and makes it easier to manage dependencies. Users don't need to worry about installing specific libraries on the host system.
3. Ease of deployment: Containerized MPI applications can be deployed quickly and easily. You can create a container image on a development machine and then deploy it on various computing clusters or cloud instances without worrying about configuring the environment each time. This reduces deployment errors and accelerates the development-to-production cycle.
4. Resource management: Containers can help manage resource allocation more effectively. You can specify resource limits and constraints within the container, allowing for better control over CPU, memory, and network usage. This is important in multi-tenant or shared computing environments.
5. Scaling and load balancing: Container orchestration platforms like Kubernetes and Docker Swarm make it easier to scale and load balance MPI applications. You can dynamically adjust the number of containers to match the workload, ensuring efficient resource utilization.

While containerizing MPI-based applications offers numerous advantages, it's essential to consider factors such as container orchestration, networking, and storage configurations to optimize performance and resource utilization in HPC environments. Properly designed and managed containers can simplify the deployment and scaling of MPI applications while maintaining compatibility and consistency across different systems.

Best practices for containerizing MPI applications:

Containerizing an MPI-based application with Docker involves some specific considerations to ensure that the application can run efficiently and scale properly within the containerized environment. Here are some general steps and best practices to follow:

• Linking your MPI Libraries dynamically: Certain HPC servers provide their own implementations for MPI based on the provisioned hardware. Make sure to compare performances of your chosen MPI implementation with the natively available MPI library, and link those to your application dynamically if required.
• Select a suitable base image: Choose a base image that matches the operating system and environment required for your MPI application. Common choices include CentOS, Ubuntu, or specialized HPC base images.
• Install MPI Implementation: Install the MPI library (e.g., MPICH, Open MPI, Intel MPI) inside the container. Ensure that the MPI version and configuration match your application's requirements.
• Set Up SSH or alternative communication: MPI applications often rely on SSH for communication between nodes. You may need to configure SSH inside the container or explore alternative communication methods, such as using MPI-specific communication libraries for container environments.
• Configure networking: Configure network settings to enable communication between containers on different hosts if your MPI application spans multiple containers or nodes. Consider using container orchestration tools like Kubernetes for MPI applications that need dynamic scaling.
• Test locally: Test the MPI application within a single container on a local system to ensure that it runs correctly and efficiently. Use a small number of processes initially for testing.
• Scaling and load balancing: If your application involves scaling to multiple containers or nodes, implement appropriate scaling and load balancing mechanisms. Concepts around container orchestration on HPC are still being researched, but if you’re purely attempting to experiment without performance considerations, a master-worker styled setup on top of Kubernetes/Docker swarm can prove to be effective.

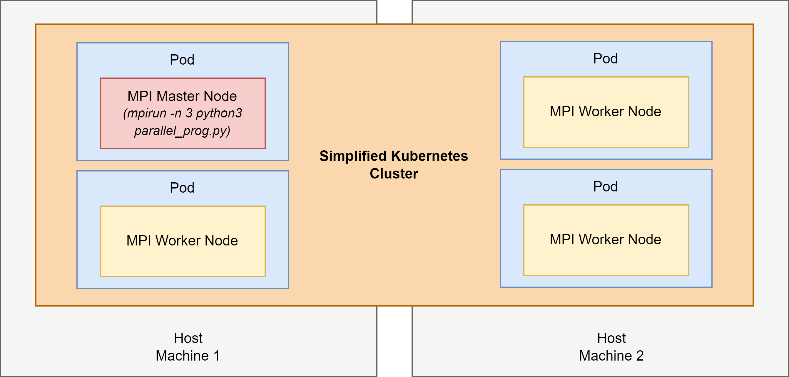

Master-Slave setup in a Kubernetes environment for running a workload that uses MPI under the hood.

• Benchmarking: Multiple tools are available for automagically measuring the performance of the MPI library while it’s being utilised. Marmot is one such tool. For performing manual benchmarking, the preferred tool in the community is osu-benchmark.
• Cleanup and optimization: Remove unnecessary files and dependencies to optimize the size of the container image. Smaller images are faster to deploy and require less storage space.
• Security considerations: Ensure that security best practices are followed, including restricting container privileges, using non-root users, and applying security patches regularly.
• Testing across environments: Test the containerized MPI application on different hardware and environments to ensure portability and compatibility.
• Deployment automation: Implement automation scripts or tools to facilitate the deployment and management of containerized MPI applications, especially in production environments.

By following these steps and best practices, you can effectively containerize your MPI-based applications with Docker or any other containerization platform of choice, making them more portable, scalable, and manageable in various computing environments.
